Bayonet Caps & Springs

Bayonet Fittings: Caps & Springs

  • Single J-slot
  • Material: Nickel Plated Brass
  • BC-FA: suits our FLEX ARMOR
  • Custom caps available to special order

NICKEL PLATED BRASS BAYONET CAPS
Part # Description
BC-FA Threaded to suit 3/16″ ID Flex Armor
BC-S Threaded to suit BCS-12-302 or BCS-8-302 spring
BC-P Plain to suit 3/16″ OD probe
BC-P-18 Plain to suit 1/8″ OD probe

  • Single J-slot
  • Material: SS304
  • BC-FA-SS: suits our FLEX ARMOR
  • Custom caps available to special order

STAINLESS STEEL BAYONET CAPS
Part # Description
BC-FA-SS Threaded to suit 3/16″ ID Flex Armor
BC-S-SS Threaded to suit BCS-12-302 or BCS-8-302 spring
BC-P-SS Plain to suit 3/16″ OD probe

  • Double J-slot
  • Material: Nickel Plated Brass
  • Cap Dims: OD = 15 mm / ID = 12.5 mm
  • Custom caps available to special order

DOUBLE J-SLOT BAYONET CAPS
Part # Description
BC-FA-2M Double J-slot to suit Metric Adaptors, threaded to suit 3/16″ ID Flex Armor
BC-S-2M Double J-slot to suit Metric Adaptors, threaded to suit BCS-12-302 or BCS-8-302 spring

  • Custom springs available to special order
  • Custom braze rings available to special order

SPRINGS
Part # Description
BCS-12-302 Stainless Steel 302: 12” Bell Spring for 3/16“ OD Probes (suits BC-S Caps)
BCS-8-302 Stainless Steel 302: 8” Bell Spring for 3/16“ OD Probes (suits BC-S Caps)
BCS-158-316 Stainless Steel 316: 1-5/8” for 3/16” OD Probe (suits BC-P)
BR-316 Stainless Steel 316: Braze Rings for 3/16” probe
BR-18 Stainless Steel 316: Braze Rings for 1/8” probe
BR-14 Stainless Steel 316: Braze Rings for 1/4” probe
Bayonet Caps and Springs

FIXED BAYONET FITTING
Part # Description
TC430 Fixed bayonet fitting for 3/16″ OD probe: includes Cap (BC-P), Spring (BCS-158-316) & 2 braze rings (BR-316)
TC430-18 Fixed bayonet fitting for 1/8″ OD probe: includes Cap (BC-P-18), Spring (BCS-158-125) & 2 braze rings (BR-18)
NOTE: These can be purchased separately.
Bayonet Caps and Springs

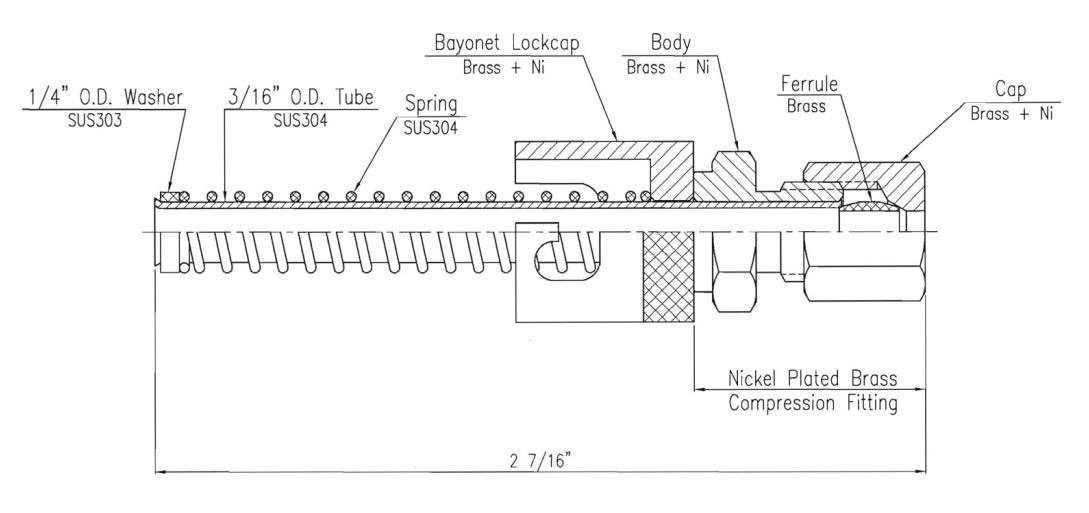

ADJUSTABLE BAYONET FITTING
Part # Description
TC439 Bayonet fitting w/ compression nut and sleeve & spring. Bore size for 1/8″ OD probe
