Standard Size: Accessories

Accessories

Standard Connector Wire Clamp Bracket

Hamitherm Connectors Standard Size Accessories

20.055-x

Hamitherm Connectors Standard Size Accessories

20.333
Application
Wire clamp bracket will provide optimum strain relief. Construction allows a large difference in maximum and minimum wire diameter.

Construction
All stainless steel, incl stainless steel screws

Part Nr.

20.055-1 standard connector fits on all connectors CSP(L), CSJ, CSPH(L), CSJH, CSPQ(L), CSJQ, CSPT(L) and CSJT
20.055-2 standard connector ceramic fits on all connectors CSPC(L), CSJC
20.055-5 standard connector duplex fits on all connectors CSPD(L), CSJD
20.333 standard connector ultra high temp fits on all connectors CSPU(L), CSJU

Accessories

Standard Connector Tube Adapter

Hamitherm Connectors Standard Size Accessories

Hamitherm Connectors Standard Size Accessories

Hamitherm Connectors Standard Size Accessories

Application
Can be used to mount the connector on mineral insulated cable or a tube type thermocouple. Can be used several times if not overtightened.

Construction
Stainless steel compression fitting with brass ferrule on stainless steel bracket

Standard Connector

Part Nr. Diameter Dim. L Wrench size
20.154-1 1,7 mm – 1/16″ +/- 19 mm Hex 10 mm
20.154-2 3,3 mm – 1/8″ +/- 20 mm Hex 10 mm
20.154-3 4,9 mm – 3/16″ +/- 23 mm Hex 13 mm
20.154-4 6,5 mm – 1/4′ +/- 24 mm Hex 13 mm
20.154-5 8,1 mm – 5/16″ +/- 25 mm Hex 16mm
20.154-6 6,0 mm +/- 24 mm Hex 13 mm
20.154-7 9,5 mm – 3/8″ +/- 26 mm Hex 16 mm

This tube adapter fits on all connectors CSP(L), CSJ, CSPH(L), CSJH, CSPQ(L), CSJQ, CSPT(L) and CSJT.

Standard Connector Ceramic

Part Nr. Diameter Dim. L Wrench size
20.344-1 1,7 mm – 1/16″ +/- 19 mm Hex 10 mm
20.344-2 3,3 mm – 1/8″ +/- 20 mm Hex 10 mm
20.344-3 4,9 mm – 3/16″ +/- 23 mm Hex 13 mm
20.344-4 6,5 mm – 1/4′ +/- 24 mm Hex 13 mm
20.344-5 8,1 mm – 5/16″ +/- 25 mm Hex 16 mm
20.344-6 6,0 mm +/- 24 mm Hex 13 mm
20.344-7 9,5 mm – 3/8″ +/- 26 mm Hex 16 mm

This tube adapter fits on all connectors CSPC(L), CSJC, CSPCQ(L), CSJCQ.

Standard Connector Ultra High Temp

Part Nr. Diameter Dim. L Wrench size
20.345-1 1,7 mm – 1/16″ +/- 19 mm Hex 10 mm
20.345-2 3,3 mm – 1/8″ +/- 20 mm Hex 10 mm
20.345-3 4,9 mm – 3/16″ +/- 23 mm Hex 13 mm
20.345-4 6,5 mm – 1/4′ +/- 24 mm Hex 13 mm
20.345-5 8,1 mm – 5/16″ +/- 25 mm Hex 16 mm
20.345-6 6,0 mm +/- 24 mm Hex 13 mm
20.345-7 9,5 mm – 3/8″ +/- 26 mm Hex 16 mm

This tube adapter fits on all connectors CSPU(L), CSJU.

Accessories

Standard Connector Crimp-insert

Hamitherm Connectors Standard Size Accessories

20.025-x

Hamitherm Connectors Standard Size Accessories

20.260-1
Application
Crimp-insert can be fitted in the entrance hole of the connector. Designed for soldering or crimping on mineral insulated cable or crimping on insulated wire.

Construction
Brass machined insert with 0,1 mm tolerance on the cable OD. The adapter fits in all standard connectors.

Part Nr. A B
20.025-1 1,10 mm 2,40 mm
20.025-2 1,60 mm 2,40 mm
20.025-3 1,70 mm 2,40 mm
20.025-4 2,10 mm 3,20 mm
20.025-5 2,40 mm 3,20 mm
20.025-6 3,10 mm 4,30 mm
20.025-7 3,30 mm 4,30 mm
20.025-8 4,60 mm 6,00 mm
20.025-9 4,90 mm 6,00 mm
20.025-10 6,10 mm 7,90 mm
20.025-11 6,50 mm 7,90 mm
20.025-12   7,90 mm
20.025-13 5,60 mm 6,50 mm
20.025-14 7,00 mm 7,90 mm
20.025-15 0,90 mm 2,40 mm
20.025-16 4,10 mm 6,00 mm



20.260-1 9,0 mm 10,00 mm

Accessories

Standard Connector Braze/Crimp adapter

Hamitherm Connectors Standard Size Accessories
Application
Adapter can be fitted in the entrance hole of the connector to braze/crimp in mineral isolated cable.

Construction
Stainless steel adapter, AISI-303 / DIN-1.4305
The adapter fits in all standard connectors.

Part Nr. A B
20.332-1 1,10 mm 2,40 mm
20.332-2 1,60 mm 2,40 mm
20.332-3 1,70 mm 2,40 mm
20.332-4 2,10 mm 3,20 mm
20.332-5 2,40 mm 3,20 mm
20.332-6 3,10 mm 4,30 mm
20.332-7 3,30 mm 4,30 mm
20.332-8 4,60 mm 6,00 mm
20.332-9 4,90 mm 6,00 mm
20.332-10 6,10 mm 7,90 mm
20.332-11 6,50 mm 7,90 mm
20.332-14 7,00 mm 7,90 mm

Accessories

Standard Connector L-Bracket crimp-adapter

Hamitherm Connectors Standard Size Accessories
Application
L-Bracket can be fitted on the connector, the brass crimp-adapter is specially treated to crimp on mineral isolated cable.

Construction
Stainless steel L-Bracket with brass crimp-adapter, chrome plated.

Part Nr. Dimension A Dimension B
20.351-1 1,7 mm – 1/16″ 2,4 mm
20.351-2 3,3 mm – 1/8″ 4,3 mm
20.351-3 4,9 mm – 3/16″ 6,0 mm
20.351-4 6,5 mm – 1/4″ 7,9 mm
20.351-5 3,1 mm 4,3 mm
20.351-6 6,1 mm 7,9 mm

Accessories

Standard Connector Grommet

Hamitherm Connectors Standard Size Accessories
Application
Grommet can be fitted in the entrance hole of the connector to prevent moisture and dirt from entering the connector. Has limited strain relief capabilities.

Construction
Silicone ring slit for easy mounting over the wire. Will compress on the wire when cover is fitted.

Temperature Rating
200°C Max.

Part Nr. A
20.048-1 2,50 mm
20.048-2 1,50 mm
20.048-3 4,50 mm

Accessories

Standard Connector Wire Insert

Hamitherm Connectors Standard Size Accessories
Application
A set wire inserts fitted in the entrance hole of the connector will provide a very good strain relief without any protruding parts from the connector.

Construction
Thermoplastic material with a round or oval hole to fit around a specific wire.

Part Nr. Round/Oval Wire
20.076-5 Round 3,5 mm
20.076-24 Round 2,0 x 1,5 mm

Accessories

Standard Connector Protection Boot

Hamitherm Connectors Standard Size Accessories

Hamitherm Connectors Standard Size Accessories

Two Pin

Hamitherm Connectors Standard Size Accessories

Three Pin
Application
The two flexible silicone rubber boots will cover the connector set snugly and prevent moisture, water and dirt entering the connector.

Temperature Rating

  • 200°C

Construction

  • Silicone cover with retention ring prevent disconnection due to vibration.
  • Tapered entrace hole to ensure proper sealing on most cable diameters.



Part Nr. 20.061-1 Two pin connector
  20.061-2 Three pin connector

Note: for one set order 2 pcs

Accessories

Standard Connector Locking Clip

Hamitherm Connectors Standard Size Accessories
Application
In order to prevent accidental disconnection a locking clip can be used.

Construction

  • Stainless Steel clip
  • Can be placed without any tools



Part Nr. 20.269

Accessories

Standard Connector Bending Protection

Hamitherm Connectors Standard Size Accessories
Application
Beding protection for thermocouples and wire being used with standard connectors. Prevents mechanical damage of wires at entrace point of the connector.

Construction

  • Silicon rubber insert, tapered entrance hole ensures proper sealing on cable
  • Fits in all standard connectors

Temperature Rating

  • 200°C



Part Nr. 20.294

Accessories

Standard Connector U-Bracket Braze/Crimp

Hamitherm Connectors Standard Size Accessories

Hamitherm Connectors Standard Size Accessories

Hamitherm Connectors Standard Size Accessories

Application
Allows the use of two standard connectors to be fitted on duplex mineral cable or duplex wire.

Construction
Stainless steel crimp braze/crimp-tube (AISI-303 / DIN 1.4305) on stainless steel bracket.

Standard Connector

Part Nr. Dimension A Dimension B
20.116-1 6,1 7,9
20.116-2 8,1 9,9
20.116-3 6,5 7,9

This bracket fits on all connectors CSP(L), CSJ, CSPH(L), CSJH, CSPU(L) and CSJU(L).

Standard Connector Ceramic

Part Nr. Dimension A Dimension B
20.340-1 6,1 7,9
20.340-2 8,1 9,9
20.340-3 6,5 7,9

This bracket fits on all connectors CSPC(L), CSJC.

Standard Connector 3-pin

Part Nr. Dimension A Dimension B
40.725-1 6,1 7,9
40.725-2 8,1 9,9
40.725-3 6,5 7,9

This bracket fits on all connectors CSPT(L), CSJT.

Accessories

Standard Connector U-Bracket Wire Clamp

Hamitherm Connectors Standard Size Accessories

Hamitherm Connectors Standard Size Accessories

Hamitherm Connectors Standard Size Accessories

Application
Allows the use of two standard connectors to be fitted on duplex wire. Construction provides optimum strainrelief and large difference in minimum and maximum diamter.

Construction
All stainless steel incl. stainless steel screws.

Standard Connector

Part Nr. 20.191

This bracket fits on all connectors CSP(L), CSJ, CSPH(L), CSJH, CSPU(L) and CSJU.

Standard Connector Ceramic

Part Nr. 20.341

This bracket fits on all connectors CSPC(L), CSJC.

Standard Connector 3-Pin

Part Nr. 20.353

This bracket fits on all connectors CSPT(L), CSJT.

Accessories

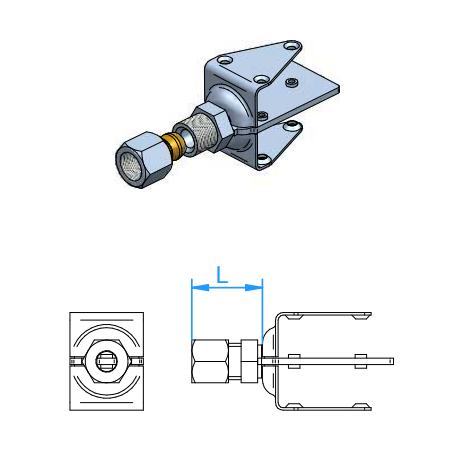

Standard Connector U Bracket Tube Adapter

Hamitherm Connectors Standard Size Accessories

Hamitherm Connectors Standard Size Accessories

Hamitherm Connectors Standard Size Accessories

Application
Can be used to mount two standard connectors on mineral insulated cable or a tube type thermocouple. Can be used several times if not overtightened.

Construction
Stainless steel compression fitting with a brass ferrule on stainless steel bracket

Standard Connector

Part Nr. Diameter Dim. L Wrench size
20.117-1 1,7 mm – 1/16″ +/- 19 mm Hex 10 mm
20.117-2 3,3 mm – 1/8″ +/- 20 mm
20.117-3 4,9 mm – 3/16″ +/- 23 mm Hex 13 mm
20.117-4 6,5 mm – 1/4′ +/- 24 mm Hex 13 mm
20.117-5 8,1 mm – 5/16″ +/- 25 mm Hex 16 mm
20.117-6 6,0 mm +/- 24 mm Hex 13 mm
20.117-7 9,5 mm – 3/8″ +/- 26 mm Hex 16 mm

This tube adapter fits on all connectors CSP(L), CSJ, CSPH(L), CSJH, CSPU(L), CSJU.

Standard Connector Ceramic

Part Nr. Diameter Wrench size
20.342-1 1,7 mm – 1/16″ Hex 10 mm
20.342-2 3,3 mm – 1/8″ Hex 10 mm
20.342-3 4,9 mm – 3/16″ Hex 13 mm
20.342-4 6,5 mm – 1/4″ Hex 13 mm
20.342-5 8,1 mm – 5/16″ Hex 16 mm
20.342-6 6,0 mm Hex 13 mm
20.342-7 9,5 mm – 3/8″ Hex 16 mm

This tube adapter fits on all connectors CSPC(L), CSJC.

Standard Connector 3-Pin

Part Nr. Diameter Wrench size
40.787-1 1,7 mm – 1/16″ Hex 10 mm
40.787-2 3,3 mm – 1/8″ Hex 10 mm
40.787-3 4,9 mm – 3/16″ Hex 13 mm
40.787-4 6,5 mm – 1/4″ Hex 13 mm
40.787-5 8,1 mm – 5/16″ Hex 16 mm
40.787-6 6,0 mm Hex 13 mm
40.787-7 9,5 mm – 3/8″ Hex 16 mm

This tube adapter fits on all connectors CSPT(L), CSJT.
