Standard & Mini Size: Panel Jacks

Panels

Panel Standard Insert Round Direct Mounting

Panel Jacks

Panel cut-out : 27 mm diameter
Panel thickness : 5 mm max.
Application
Panel insert for thermocouple and RTD circuits. Mounting by means of two screws at the front1).

Construction

  • Glass filled thermoplastic body with original thermocouple material pins and springloaded inserts.
  • Polarized pins ensure proper connection.
  • Easy wire connection through sandwich construction.
  • Molded barriers prevent short circuit.
  • Rugged one body design.
  • Stainless Steel screws and brackets for front mounting1)

Wire size

  • Accepts wires up to 3,0 mm.

Temperature rating

  • 220°C Max.

Color Code

  • Available in all color code standards incl. NFE, BS, JIS, etc.

Accessories:

  • Panel Punch for 27 mm, partnr. 20.367

Note
1) For other mounting options please see separate specification sheet for PSIRB-xx.

Ordering Code: PSIR-xx
For last two digits ‘xx’ see table below
Calibration Code E J K N T U R/S C B
Compensation material for             Pt13Rh/ W5Re/ Pt6Rh/
Material Positive             Pt W26Re Pt30Rh
Material Negative NiCr Fe NiCr NiCrSi Cu Cu Cu CPX Cu
  CuNi CuNi NiAl NiSi CuNi Cu Alloy #11 CNX Cu
IEC Color Code
Color Body Violet Black Green Pink Brown White Orange Red Grey
Code EI JI KI NI TI UI RI C BI
ANSI Color Code
Color Body Violet Black Yellow Orange Blue White Green Red Grey
Code EI JI KA NA TA UI RA C BI
DIN Color Code
Color Body   Blue Green   Brown   White   Grey
Code   JD KI   TI   RD   BI

Panels

Panel Insert Round Bracket Mount

Panel Jacks

Panel cut-out : 27 mm diameter
Panel thickness : 5 mm max.
Application
Panel insert for thermocouple and RTD circuits.
Suited for small wires. Mounting by means of two screws with a bracket behind the panel1).

Construction

  • Glass filled thermoplastic body with original thermocouple material pins and springloaded inserts.
  • Polarized pins ensure proper connection.
  • Easy wire connection through sandwich construction.
  • Molded barriers prevent short circuit.
  • Rugged one body design.
  • Polarity indication on body
  • Stainless Steel screws and brackets for rear mounting1)

Wire size

  • Accepts wires up to 3,0 mm.

Temperature rating

  • 220°C Max.

Color Code

  • Available in all color code standards incl. NFE, BS, JIS, etc.

Accessories:

  • Panel Punch for 27 mm, partnr. 20.367

Note
1) For other mounting options please see separate specification sheet for PSIR-xx.

Ordering Code: PSIRB-xx
For last two digits ‘xx’ see table below
Calibration Code E J K N T U R/S C B
Compensation material for             Pt13Rh/ W5Re/ Pt6Rh/
Material Positive             Pt W26Re Pt30Rh
Material Negative NiCr Fe NiCr NiCrSi Cu Cu Cu CPX Cu
  CuNi CuNi NiAl NiSi CuNi Cu Alloy #11 CNX Cu
IEC Color Code
Color Body Violet Black Green Pink Brown White Orange Red Grey
Code EI JI KI NI TI UI RI C BI
ANSI Color Code
Color Body Violet Black Yellow Orange Blue White Green Red Grey
Code EI JI KA NA TA UI RA C BI
DIN Color Code
Color Body   Blue Green   Brown   White   Grey
Code   JD KI   TI   RD   BI

Panels

Panel Standard Insert Lugged

Panel Jacks

Panel cut-out : 12,9 x 25,5 mm
Panel thickness : 3,0 mm
Application
Panel insert for thermocouple and RTD circuits.
Can be mounted in a single circuit version or in rows in customer panels. Mounting by means of two M3 screws.

Construction

  • Glass filled thermoplastic body with original thermocouple material pins and springloaded inserts.
  • Polarized pins.
  • Molded barriers prevent short circuit.
  • Polarity indication next to connection screws

Wire size

  • Accepts wires up to 3,0 mm.

Temperature rating

  • 220°C Max.

Color Code

  • Available in all color code standards incl. NFE, BS, JIS, etc.
Ordering Code: PSIL-xx
For last two digits ‘xx’ see table below
Calibration Code E J K N T U R/S C B
Compensation material for             Pt13Rh/ W5Re/ Pt6Rh/
Material Positive             Pt W26Re Pt30Rh
Material Negative NiCr Fe NiCr NiCrSi Cu Cu Cu CPX Cu
  CuNi CuNi NiAl NiSi CuNi Cu Alloy #11 CNX Cu
IEC Color Code
Color Body Violet Black Green Pink Brown White Orange Red Grey
Code EI JI KI NI TI UI RI C BI
ANSI Color Code
Color Body Violet Black Yellow Orange Blue White Green Red Grey
Code EI JI KA NA TA UI RA C BI
DIN Color Code
Color Body   Blue Green   Brown   White   Grey
Code   JD KI   TI   RD   BI

Panels

Panel Standard Insert Flanged Bracket Mounting

Panel Jacks

Panel cut-out : 12,9 x 25,5 mm
Panel thickness : 5 mm max.
Application
Panel insert for thermocouple and RTD circuits. Mounting by means of a stainless steel bracket and two screws.

Construction

  • Glass filled thermoplastic body with original thermocouple material pins and springloaded inserts.
  • Polarized pins ensure proper connection.
  • Molded barriers prevent short circuit.
  • Polarity indication on the body
  • Rugged one body design.
  • Stainless steel screws and bracket for rear mounting (also available with metal spring-clip)

Wire size

  • Accepts wires up to 3,0 mm.

Temperature rating

  • 220°C Max.

Color Code

  • Available in all color code standards incl. NFE, BS, JIS, etc.
Ordering Code: PSIFB-xx
  PSIF-xx
For last two digits ‘xx’ see table below
spring clip mounting
Calibration Code E J K N T U R/S C B
Compensation material for             Pt13Rh/ W5Re/ Pt6Rh/
Material Positive             Pt W26Re Pt30Rh
Material Negative NiCr Fe NiCr NiCrSi Cu Cu Cu CPX Cu
  CuNi CuNi NiAl NiSi CuNi Cu Alloy #11 CNX Cu
IEC Color Code
Color Body Violet Black Green Pink Brown White Orange Red Grey
Code EI JI KI NI TI UI RI C BI
ANSI Color Code
Color Body Violet Black Yellow Orange Blue White Green Red Grey
Code EI JI KA NA TA UI RA C BI
DIN Color Code
Color Body   Blue Green   Brown   White   Grey
Code   JD KI   TI   RD   BI

Panels

Panel Standard Insert

Panel Jacks

Panel cut-out : 12,9 x 25,5 mm
Panel thickness : 2,5 mm
Application
Panel insert for thermocouple and RTD circuits.
Specially designed to be used together with Hamitherm panel sets.

Construction

  • Glass filled thermoplastic body with original thermocouple material pins and springloaded inserts.
  • Polarized pins.
  • Molded barriers prevent short circuit.
  • Polarity indication next to connection screws.

Wire size

  • Accepts wires up to 3,0 mm.

Temperature rating

  • 220°C Max.

Color Code

  • Available in all color code standards incl. NFE, BS, JIS, etc.

Accessories:

  • Should be used with Hamitherm panel sets. Please see separate specification sheet.
Ordering Code: PSI-xx
For last two digits ‘xx’ see table below
Calibration Code E J K N T U R/S C B
Compensation material for             Pt13Rh/ W5Re/ Pt6Rh/
Material Positive             Pt W26Re Pt30Rh
Material Negative NiCr Fe NiCr NiCrSi Cu Cu Cu CPX Cu
  CuNi CuNi NiAl NiSi CuNi Cu Alloy #11 CNX Cu
IEC Color Code
Color Body Violet Black Green Pink Brown White Orange Red Grey
Code EI JI KI NI TI UI RI C BI
ANSI Color Code
Color Body Violet Black Yellow Orange Blue White Green Red Grey
Code EI JI KA NA TA UI RA C BI
DIN Color Code
Color Body   Blue Green   Brown   White   Grey
Code   JD KI   TI   RD   BI

Panels

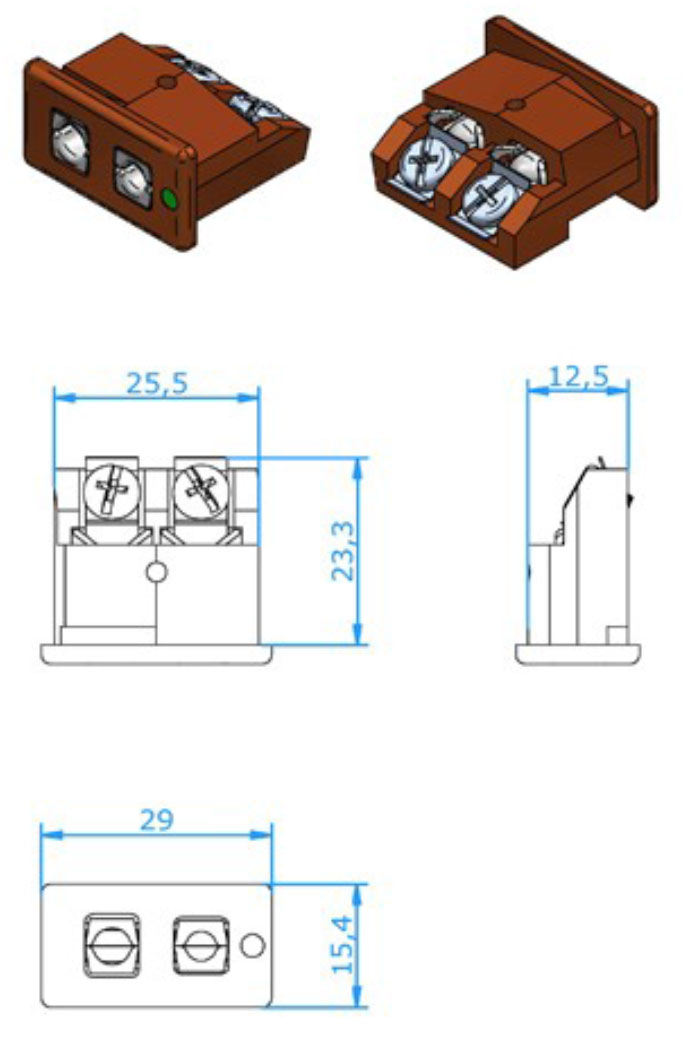

Panel Standard Insert High Temperature

Panel Jacks
Application
Panel insert for thermocouple and RTD circuits.
Specially designed to be used together with Hamitherm high temperature stainless steel panels.

Construction

  • Thermosetting body with original thermocouple material pins and springloaded inserts.
  • Polarized pins.
  • Molded barriers prevent short circuit.
  • Polarity indication next to connection screws.

Wire size

  • Accepts wires up to 3,0 mm.

Temperature rating

  • 350°C Max.

Color Code

  • Body color brown, calibration indicated by colored dot.

Accessories:

  • Should be used with Hamitherm stainless steel panels.
Ordering Code: PSIH-xx
For last two digits ‘xx’ see table below
Calibration Code E J K N T U R/S C B
Compensation material for             Pt13Rh/ W5Re/ Pt6Rh/
Material Positive             Pt W26Re Pt30Rh
Material Negative NiCr Fe NiCr NiCrSi Cu Cu Cu CPX Cu
  CuNi CuNi NiAl NiSi CuNi Cu Alloy #11 CNX Cu
IEC Color Code
Color Dot Violet Black Green Pink Brown White Orange Red Grey
Code EI JI KI NI TI UI RI C BI
ANSI Color Code
Color Dot Violet Black Yellow Orange Blue White Green Red Grey
Code EI JI KA NA TA UI RA C BI
DIN Color Code
Color Dot   Blue Green   Brown   White   Grey
Code   JD KI   TI   RD   BI

Panels

Panel Standard Insert Three Pin Lugged

Panel Jacks

Panel cut-out : 12,9 x 36,6 mm
Panel thickness : 3,0 mm
Application
Panel insert for thermocouple and RTD circuits.
Third connection for ground or continuous shield or for three wire RTD’s. Can be mounted in a single circuit version or in rows in customer panel. Mounting by means of two M3 screws.

Construction

  • Glass filled thermoplastic body with original thermocouple material pins and springloaded inserts.
  • Polarized pins ensure proper connection.
  • Central cover screw design for quick wiring.
  • Molded barriers prevent short circuit.
  • Captive cover screw for easy assembly.

Wire size

  • Accepts wires up to 2,0 mm.
  • Maximum cable diameter 8,0 mm.

Temperature rating

  • 220°C Max.

Color Code

  • Available in all color code standards. Incl. NFE, BS, JIS, etc.

Accessories:
Most accessories for the standard connectors can be fitted. See separate specification sheet.

Ordering Code: PSITL-xx
For last two digits ‘xx’ see table below
Calibration Code E J K N T U R/S C B
Compensation material for             Pt13Rh/ W5Re/ Pt6Rh/
Material Positive             Pt W26Re Pt30Rh
Material Negative NiCr Fe NiCr NiCrSi Cu Cu Cu CPX Cu
  CuNi CuNi NiAl NiSi CuNi Cu Alloy #11 CNX Cu
IEC Color Code
Color Body Violet Black Green Pink Brown White Orange Red Grey
Code EI JI KI NI TI UI RI C BI
ANSI Color Code
Color Body Violet Black Yellow Orange Blue White Green Red Grey
Code EI JI KA NA TA UI RA C BI
DIN Color Code
Color Body   Blue Green   Brown   White   Grey
Code   JD KI   TI   RD   BI

Panels

Panel Standard Insert Three Pin High Temperature

Panel Jacks
Application
Panel insert for thermocouple and RTD circuits.
Specially designed to be used together with Hamitherm high temperature stainless steel panels.

Construction

  • Thermosetting body with original thermocouple material pins and springloaded inserts.
  • Polarized pins.
  • Molded barriers prevent short circuit.
  • Polarity indication next to connection screws.

Wire size

  • Accepts wires up to 3,0 mm.

Temperature rating

  • 350°C Max.

Color Code

  • Body color black, calibration indicated by colored dot.

Accessories:

  • Should be used with Hamitherm stainless steel panels.
Ordering Code: PSITH-xx
For last two digits ‘xx’ see table below
Calibration Code E J K N T U R/S C B
Compensation material for             Pt13Rh/ W5Re/ Pt6Rh/
Material Positive             Pt W26Re Pt30Rh
Material Negative NiCr Fe NiCr NiCrSi Cu Cu Cu CPX Cu
  CuNi CuNi NiAl NiSi CuNi Cu Alloy #11 CNX Cu
IEC Color Code
Color Dot Violet Black Green Pink Brown White Orange Red Grey
Code EI JI KI NI TI UI RI C BI
ANSI Color Code
Color Dot Violet Black Yellow Orange Blue White Green Red Grey
Code EI JI KA NA TA UI RA C BI
DIN Color Code
Color Dot   Blue Green   Brown   White   Grey
Code   JD KI   TI   RD   BI

Panels

Panel Miniature Insert Round Direct Mount

Panel Jacks

Panel cut-out : 17,5 mm diameter
Application
Panel insert for thermocouple and RTD circuits.
Mounting by means of two screws at the front 1). Ideal panelinsert for instrument cases.

Construction

  • Glass filled thermoplastic body with original thermocouple material pins and springloaded inserts.
  • Polarized pins ensure proper connection.
  • Easy wire connection through sandwich construction.
  • Molded barriers prevent short circuit.
  • Rugged one body design.
  • Polarity indication on body
  • Stainless steel screws and brackets for front mounting

Wire size

  • Accepts wires up to 2,0 mm.

Temperature rating

  • 220°C Max.

Color Code

  • Available in all color code standards. Incl. NFE, BS, JIS, etc.

Accessories:

  • Panel Punch for 11/16″ – 17,5 mm, partnr. 20.366

Note
1) For other mounting options please see separate specification sheet for PSIRB-xx and PMIRC-xx.

Ordering Code: PMIR-xx
For last two digits ‘xx’ see table below
Calibration Code E J K N T U R/S C B
Compensation material for             Pt13Rh/ W5Re/ Pt6Rh/
Material Positive             Pt W26Re Pt30Rh
Material Negative NiCr Fe NiCr NiCrSi Cu Cu Cu CPX Cu
  CuNi CuNi NiAl NiSi CuNi Cu Alloy #11 CNX Cu
IEC Color Code
Color Body Violet Black Green Pink Brown White Orange Red Grey
Code EI JI KI NI TI UI RI C BI
ANSI Color Code
Color Body Violet Black Yellow Orange Blue White Green Red Grey
Code EI JI KA NA TA UI RA C BI
DIN Color Code
Color Body   Blue Green   Brown   White   Grey
Code   JD KI   TI   RD   BI

Panels

Panel Miniature Insert Round Bracket Mount

Panel Jacks

Panel cut-out : 17,5 mm diameter
Application
Panel insert for thermocouple and RTD circuits.
Mounting by means of a stainless steel bracket with two screws behind the panel. Ideal panelinsert for instrument cases.

Construction

  • Glass filled thermoplastic body with original thermocouple material pins and springloaded inserts.
  • Polarized pins ensure proper connection.
  • Easy wire connection through sandwich construction.
  • Molded barriers prevent short circuit.
  • Rugged one body design.
  • Polarity indication on body
  • Stainless steel screws and brackets for rear panel mounting

Wire size

  • Accepts wires up to 2,0 mm.

Temperature rating

  • 220°C Max.

Color Code

  • Available in all color code standards. Incl. NFE, BS, JIS, etc.

Accessories:

  • Panel Punch for 11/16″ – 17,5 mm, partnr. 20.366
Ordering Code: PMIRB-xx
For last two digits ‘xx’ see table below
Calibration Code E J K N T U R/S C B
Compensation material for             Pt13Rh/ W5Re/ Pt6Rh/
Material Positive             Pt W26Re Pt30Rh
Material Negative NiCr Fe NiCr NiCrSi Cu Cu Cu CPX Cu
  CuNi CuNi NiAl NiSi CuNi Cu Alloy #11 CNX Cu
IEC Color Code
Color Body Violet Black Green Pink Brown White Orange Red Grey
Code EI JI KI NI TI UI RI C BI
ANSI Color Code
Color Body Violet Black Yellow Orange Blue White Green Red Grey
Code EI JI KA NA TA UI RA C BI
DIN Color Code
Color Body   Blue Green   Brown   White   Grey
Code   JD KI   TI   RD   BI

Panels

Panel Miniature Insert Lugged

Panel Jacks

Panel cut-out : 8,1 x 16,1 mm
Panel thickness : 3,0 mm
Application
Panel insert for thermocouple and RTD circuits.
Can be mounted in a single circuit version or in rows in a customer panel. Mounting by means of two M2,5 screws.

Construction

  • Glass filled thermoplastic body with original thermocouple material pins and springloaded inserts.
  • Polarized pins ensure proper connection.
  • Easy wire connection through sandwich construction.
  • Molded barriers prevent short circuit.
  • Rugged one body design.
  • Polarity indication on body

Wire size

  • Accepts wires up to 2,0 mm.

Temperature rating

  • 220°C Max.

Color Code

  • Available in all color code standards. Incl. NFE, BS, JIS, etc.
Ordering Code: PMIL-xx
For last two digits ‘xx’ see table below
Calibration Code E J K N T U R/S C B
Compensation material for             Pt13Rh/ W5Re/ Pt6Rh/
Material Positive             Pt W26Re Pt30Rh
Material Negative NiCr Fe NiCr NiCrSi Cu Cu Cu CPX Cu
  CuNi CuNi NiAl NiSi CuNi Cu Alloy #11 CNX Cu
IEC Color Code
Color Body Violet Black Green Pink Brown White Orange Red Grey
Code EI JI KI NI TI UI RI C BI
ANSI Color Code
Color Body Violet Black Yellow Orange Blue White Green Red Grey
Code EI JI KA NA TA UI RA C BI
DIN Color Code
Color Body   Blue Green   Brown   White   Grey
Code   JD KI   TI   RD   BI

Panels

Panel Miniature Insert Flanged

Panel Jacks
Panel cut-out : 8,1 x 16,1 mm
Application
Panel insert for thermocouple and RTD circuits.
Mounting by means of stainless steel bracket and two screws. Ideal panel insert for instrument cases.

Construction

  • Glass filled thermoplastic body with original thermocouple material pins and spring loaded inserts.
  • Polarized pins ensure proper connection.
  • Easy wire connection through sandwich construction.
  • Molded barriers prevent short circuit.
  • Rugged one body design.
  • Polarity indication on body
  • Stainless steel bracket and screws for rear panel mounting

Wire size

  • Accepts wires up to 2,0 mm.

Temperature rating

  • 220°C Max.

Color Code

  • Available in all color code standards. Incl. NFE, BS, JIS, etc.
Ordering Code: PMIFB-xx
For last two digits ‘xx’ see table below
Calibration Code E J K N T U R/S C B
Compensation material for             Pt13Rh/ W5Re/ Pt6Rh/
Material Positive             Pt W26Re Pt30Rh
Material Negative NiCr Fe NiCr NiCrSi Cu Cu Cu CPX Cu
  CuNi CuNi NiAl NiSi CuNi Cu Alloy #11 CNX Cu
IEC Color Code
Color Body Violet Black Green Pink Brown White Orange Red Grey
Code EI JI KI NI TI UI RI C BI
ANSI Color Code
Color Body Violet Black Yellow Orange Blue White Green Red Grey
Code EI JI KA NA TA UI RA C BI
DIN Color Code
Color Body   Blue Green   Brown   White   Grey
Code   JD KI   TI   RD   BI

Panels

Panel Miniature Insert

Panel Jacks

Panel cut-out : 8,1 x 16,1 mm
Panel thickness : 2,5 mm
Application
Panel insert for thermocouple and RTD circuits.
Specially designed to be used together with Hamitherm panel set.

Construction

  • Glass filled thermoplastic body with original thermocouple material pins and springloaded inserts.
  • Polarized pins ensure proper connection.
  • Easy wire connection through sandwich construction.
  • Molded barriers prevent short circuit.
  • Rugged one body design.
  • Polarity indication on body

Wire size

  • Accepts wires up to 2,0 mm.

Temperature rating

  • 220°C Max.

Color Code

  • Available in all color code standards. Incl. NFE, BS, JIS, etc.

Accessories:

  • Should be used with panel sets. Please see separate specification sheet.
Ordering Code: PMI-xx
For last two digits ‘xx’ see table below
Calibration Code E J K N T U R/S C B
Compensation material for             Pt13Rh/ W5Re/ Pt6Rh/
Material Positive             Pt W26Re Pt30Rh
Material Negative NiCr Fe NiCr NiCrSi Cu Cu Cu CPX Cu
  CuNi CuNi NiAl NiSi CuNi Cu Alloy #11 CNX Cu
IEC Color Code
Color Body Violet Black Green Pink Brown White Orange Red Grey
Code EI JI KI NI TI UI RI C BI
ANSI Color Code
Color Body Violet Black Yellow Orange Blue White Green Red Grey
Code EI JI KA NA TA UI RA C BI
DIN Color Code
Color Body   Blue Green   Brown   White   Grey
Code   JD KI   TI   RD   BI

Panels

Panel Miniature Locking Insert

Panel Jacks

Panel cut-out : 8,1 x 16,1 mm *)
Panel thickness : 2,5 mm

Note *) for locking mechanism a special cut-out is needed

Application
Locking panel insert for thermocouple and RTD circuits. When used together with CMLP the locking feature will prevent accidental disconnection due to vibration etc.
Specially designed to be used together with Hamitherm panel set.

Construction

  • Glass filled thermoplastic body with original thermocouple material pins and springloaded inserts.
  • Polarized pins ensure proper connection.
  • Easy wire connection through sandwich construction.
  • Molded barriers prevent short circuit.
  • Rugged one body design.
  • Polarity indication on body

Wire size

  • Accepts wires up to 2,0 mm.

Temperature rating

  • 220°C Max.

Color Code

  • Available in all color code standards. Incl. NFE, BS, JIS, etc.

Accessories:

  • Should be used with panel sets. Please see separate specification sheet.
Ordering Code: PMLI-xx
For last two digits ‘xx’ see table below
Calibration Code E J K N T U R/S C B
Compensation material for             Pt13Rh/ W5Re/ Pt6Rh/
Material Positive             Pt W26Re Pt30Rh
Material Negative NiCr Fe NiCr NiCrSi Cu Cu Cu CPX Cu
  CuNi CuNi NiAl NiSi CuNi Cu Alloy #11 CNX Cu
IEC Color Code
Color Body Violet Black Green Pink Brown White Orange Red Grey
Code EI JI KI NI TI UI RI C BI
ANSI Color Code
Color Body Violet Black Yellow Orange Blue White Green Red Grey
Code EI JI KA NA TA UI RA C BI
DIN Color Code
Color Body   Blue Green   Brown   White   Grey
Code   JD KI   TI   RD   BI

Panels

Panel Miniature Insert Three Pin Lugged

Panel Jacks

Panel cut-out : 8,1 x 24 mm
Panel thickness : 3,0 mm
Application
Panel insert for thermocouple and RTD circuits.
Suited for wires and mineral insulated cable. Third connection for ground or continuous shield or for three wire RTD’s. Can be mounted in a single circuit version or in rows in customer panel. Mounting by means of two M 2,5 screws.

Construction

  • Glass filled thermoplastic body with original thermocouple material pins and springloaded inserts.
  • Polarized pins ensure proper connection.
  • Easy wire connection through sandwich construction.
  • Molded barriers prevent short circuit.
  • Rugged one body design.

Wire size

  • Accepts wires up to 0,6 mm.
  • Maximum cable diameter 4,5 mm.

Temperature rating

  • 220°C Max.

Color Code

  • Available in all color code standards. Incl. NFE, BS, JIS, etc.

Accessories:

  • Most accessories for the miniature connectors can be fitted. See separate specification sheet.
Ordering Code: PMITL-xx
For last two digits ‘xx’ see table below
Calibration Code E J K N T U R/S C B
Compensation material for             Pt13Rh/ W5Re/ Pt6Rh/
Material Positive             Pt W26Re Pt30Rh
Material Negative NiCr Fe NiCr NiCrSi Cu Cu Cu CPX Cu
  CuNi CuNi NiAl NiSi CuNi Cu Alloy #11 CNX Cu
IEC Color Code
Color Body Violet Black Green Pink Brown White Orange Red Grey
Code EI JI KI NI TI UI RI C BI
ANSI Color Code
Color Body Violet Black Yellow Orange Blue White Green Red Grey
Code EI JI KA NA TA UI RA C BI
DIN Color Code
Color Body   Blue Green   Brown   White   Grey
Code   JD KI   TI   RD   BI
