Explosion Proof: Aluminum & Stainless Steel

Thermocouple Heads: Explosion Proof

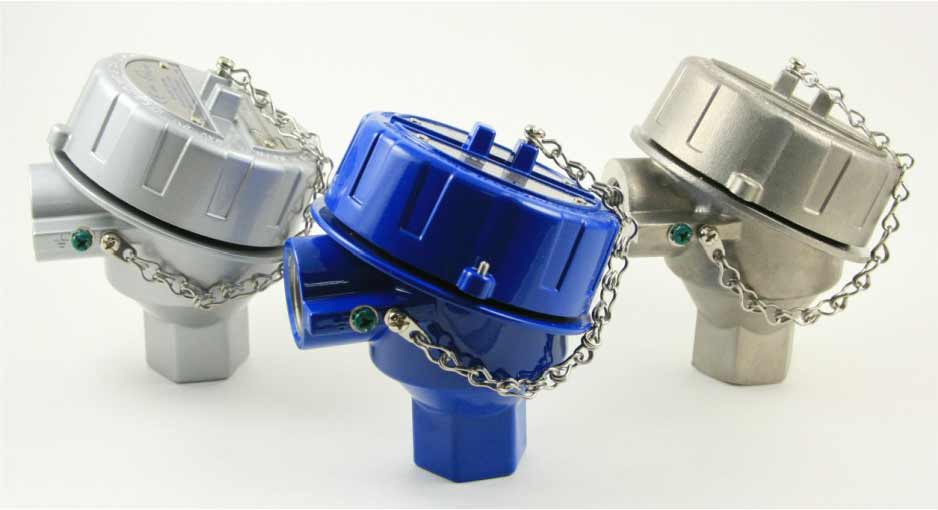

Explosion Proof Aluminum Stainless Steel
XDA Series: Aluminum, Silver Epoxy
Explosion Proof Aluminum Stainless Steel

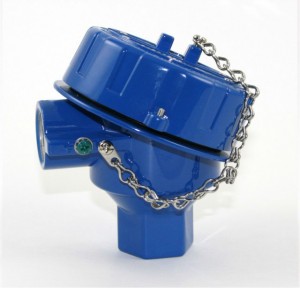

XDA Series: Aluminum, Blue Epoxy
Explosion Proof Aluminum Stainless Steel
XDS Series: SS316
XD SERIES: EXPLOSION PROOF SCREW COVER
Part # Material Epoxy Color Certification Thread Sizes (PE x CE)
XDA-1212-F Aluminum Silver FM & FMC 1/2″ x 1/2″ NPT
XDA-1234-F Aluminum Silver FM & FMC 1/2″ x 3/4″ NPT
XDA-3434-F Aluminum Silver FM & FMC 3/4″ x 3/4″ NPT
XDA-1212-A Aluminum Blue ATEX 1/2″ x 1/2″ NPT
XDA-1234-A Aluminum Blue ATEX 1/2″ x 3/4″ NPT
XDA-3434-A Aluminum Blue ATEX 3/4″ x 3/4″ NPT
XDS-1212-F SS316 FM & FMC 1/2″ x 1/2″ NPT
XDS-1234-F SS316 FM & FMC 1/2″ x 3/4″ NPT
XDS-3434-F SS316 FM & FMC 3/4″ x 3/4″ NPT
XDS-1212-A SS316 ATEX 1/2″ x 1/2″ NPT
XDS-1234-A SS316 ATEX 1/2″ x 3/4″ NPT
XDS-3434-A SS316 ATEX 3/4″ x 3/4″ NPT

fm-approved

  • Certified FM & FMC (Canada) or ATEX
  • Note: FMC conforms to all CSA Standards
  • Available in Cast Aluminum and SS316
  • Suitable for 40mm & DIN size terminal blocks & transmitters
  • Supplied with Stainless Steel Chain & Screws

Terminal Blocks: Refer TB, N & D series
Certification
Equipment Ratings
FM Explosion Proof for Class I, Division 1, Groups A, B, C and D;
  and dust-ignition proof for Class II, III Division 1, Groups E, F and G,
  hazardous (classified) locations; indoor/ outdoor
  Aluminum: NEMA 4
  SS316: NEMA 4X
FMC (Canada) Explosion Proof for Class I, Division 1, Groups A, B, C and D;
  and suitable for Class II, III Division 1, Groups E, F and G,
  hazardous (classified) locations; indoor/ outdoor
  Aluminum: NEMA 4
  SS316: NEMA 4X

ATEX Atex Directive Code: II 2 G D
  Standards Code: Ex d IIC T6, Ex tD A21 T100°C IP68
Compliant Approval Standards
Class 3600 1998
Class 3615 2006
Class 3810 2005
ANSI/ NEMA 250

CSA-C22.2 No. 0.4 2004
CSA-C22.2 No. 0.5 1982
CSA-C22.2 No. 25 1966
CSA-C22.2 No. 30 1986
CSA-C22.2 No. 94 1991
CSA-C22.2 No. 142 1987
BSI 07ATEX1532458U

Explosion Proof Aluminum Stainless Steel
Item
Description
Material
1 Body XDA: Alloy-AL ADC12
XDS: SS316
2 Cover XDA: Alloy-AL ADC12
XDS: SS316
3 O-Ring EPDM
4 Chain w/ 2 Screws SS304/ SS302
5 Screw & Locking Washer (M4x5L) SS302/ SS304
6 Grub Screw (M3x8L) SS302
7 Screw & Locking Washer (M3x5L) SS302/ SS304
Explosion Proof Aluminum Stainless Steel
Explosion Proof Aluminum Stainless Steel
Explosion Proof Aluminum Stainless Steel

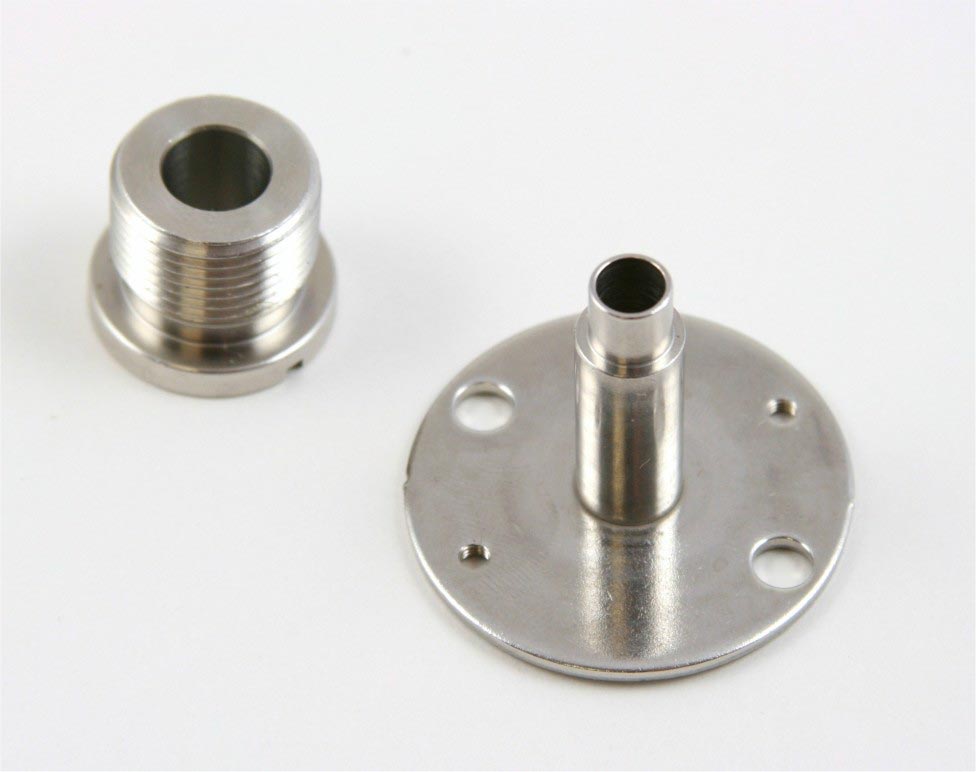

Bushing & Plate / Collar assembly shown separately

  • Flame Collar Assembly to suit ATEX approved heads
  • Not required for FM approved heads
  • Material: SS304
  • Bushing Thread: M20x1.5
  • Suitable for 40mm & DIN size terminal blocks & transmitters
  • Mount spring loaded terminal blocks directly on to collar plate for spring loaded assembly

FLAME PATH COLLAR ASSEMBLY
Part # ID of Collar
XFPA-6.1 6.1mm
XFPA-8.1 8.1mm
XFPA-9.6 9.6mm

Explosion Proof Aluminum Stainless Steel

Bushing & Plate/ Collar assembly shown together. Assembly fits into ATEX rated heads
